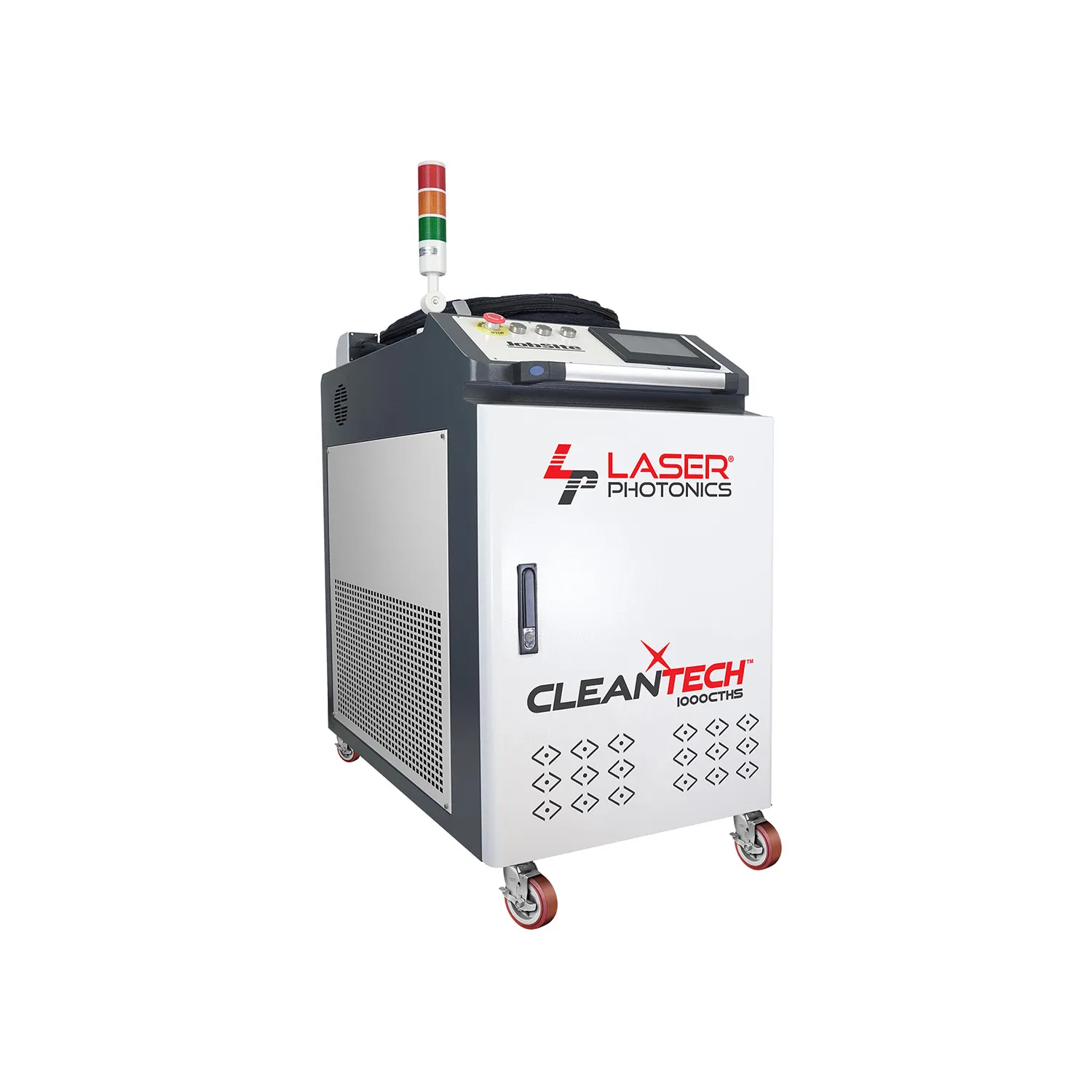

CleanTech™ LPC 1000-CTHS
Overview
The CleanTech™ LPC-1000-CTHS is an industrial-grade professional-level portable handheld roughing laser cleaner. The LPC-1000-CTHS is a high-performance, fast, precise, and incredibly productive laser cleaning too. It is designed to be a super-compact, laser cleaning and surface treatment system for medium-sized areas requiring delicate cleaning, de-painting, and other surface preparation operations. This laser can easily be installed on any production line and can be coupled with industrial robots and placed inside safety work cells with interlocks for full compliance with OSHA and FDA CDRH as Class IV Laser Systems. The strip rate of the LPC-1000-CTHS is 120ft² per hour.
Handheld
Single Axis
Roughing
This portable CleanTech™ system offers a non-abrasive cleaning process that is safer, easy to use and more eco-friendly. It minimizes chemical and abrasive usage in industrial environments to meet increasing compliant demands from OSHA, EPA and other regulatory organizations.
Note:
Please contact our sales engineer before purchasing to ensure you get the right system for your material processing. We’ll discuss your unique needs, customizations, promotions, and schedule a free sample in our lab.
Industries using the LPC 1000-CTHS
Aerospace
- Date Codes
- Serial Number
- Bullet Marking
Automotive
- Paint removal, and surface preparation
- Marking on all automobile parts
- Coating removal on windshields
Space exploration
- Cleaning of Thrusters, nozzles and other components
- Contamination removal, structure restoration
- Cutting of fuel tanks components and latches
Electrification & Batteries
- Battery Cleaning
- Battery Welding
- Titanium Oxide Removal
Technical Specifications
Handheld
A handheld laser system has a head unit that is connected to the main machine via cable, is mobile, and can be used anywhere!
Dual-Axis
A Dual-Axis laser has an optical pattern that is shaped like a box. It will clean the part faster and can handle complex shapes better than a single axis laser.
Roughing
Roughing lasers are suited for quick removal of contaminants, rust, and coatings. They handle large jobs with ease and produce a coarse finish to the surface.
Applications
• Laser Finishing, Laser Cleaning & Surface Prep
• Precise Paint Removal
• Surface Texturing & Conditioning
• Pre-Adhesion Treatment
• Pre- and Post-Weld Preparation
• Degreasing/Decontamination
• Rust & Corrosion Removal
• Mold Release Cleaning
• Zinc, Anodization, Oxide Removal
Materials
| • Steel | • Iron |
| • Ceramic | • Aluminum |
| • Brass | • Titanium |
| • Copper | • Concrete |
| • CFRP | • Plastic |
| • Silicon | • Metal Alloys |
| • Cast Iron | • Carbide |
| • Chrome | • Galvanized Metals |
System Specifications
Model Number: LPC-1000-CTHS
Strip Rate in ft² Per Hour: 120 ft²
Axis: Single Axis
Power Output: 1000 Watt
Laser Safety Class: Class IV
Wavelength: 1064 nm
Operating Mode: Continuous
Cable Length: 10-12m
Laser Pattern: 5 Pattern Presets
User Interface: 7” Touch Screen Panel
Operational Voltage: 220v 3ph, 50-60Hz, 40A
Unit Weight: 126 kg (277.8lbs)
Operating Temperature: 0-40°C (32°-104°F)
Cooling System: Built-in Water-Cooling Unit
Relative Humidity: 30 -85% Non-condensing
Safety Features: Emergency Stop, Key Switch, Remote Interlock, Reset & Emission Indication
