CleanTech™ MARLIN CTH-100-MHS
Overview
Introducing the Marine Application Rust Laser Inhibitor (“Marlin”). The Marlin 100-MHS handheld laser is an air-cooled pulse finishing laser system, perfect for small craft marine vessel application. Most marine vessels have a consistent need for corrosion control from saltwater and sea spray in areas like frame weldments and joints that deteriorate over time. The Marlin 100-MHS is the perfect solution for maintaining these vessels – its portable design lends itself to laser cleaning and surface treatment for small areas requiring delicate cleaning, paint removal, rust & corrosion removal, and other surface preparation operations.
Handheld
Dual-Axis
Finishing
This portable CleanTech™ system offers a non-abrasive cleaning process that is safer, easy to use and more eco-friendly. It minimizes chemical and abrasive usage in industrial environments to meet increasing compliant demands from OSHA, EPA and other regulatory organizations.
Note:
Please contact our sales engineer before purchasing to ensure you get the right system for your material processing. We’ll discuss your unique needs, customizations, promotions, and schedule a free sample in our lab.
Industries using the MARLIN CTH-100-CMS
Aerospace
- Date Codes
- Serial Number
- Bullet Marking
Boat Manufacturing
- Pre and Post Weld Cleaning
- Preparation For Coating
- Display and Backlit button manufacturing
Military & Defense
- Direct Parts Marking
- UID Marking
- Machine Decontamination
Shipbuilding & Maritime
- Pre-Welding
- Preparation For Coating
- Ship Maintenance
Technical Specifications
Handheld

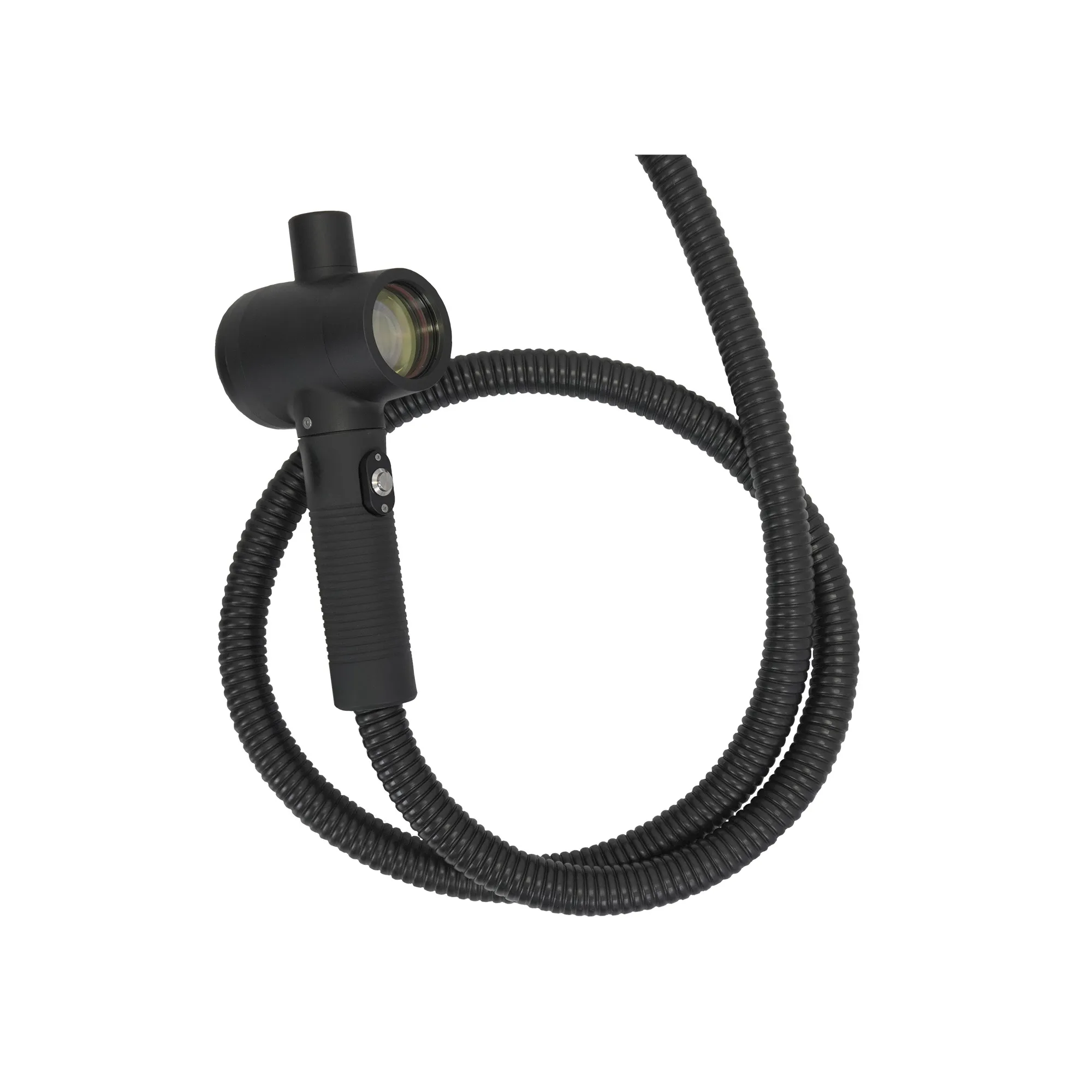

A handheld laser system has a head unit that is connected to the main machine via cable, is mobile, and can be used anywhere!
Dual-Axis
A Dual-Axis laser has an optical pattern that is shaped like a box. It will clean the part faster and can handle complex shapes better than a single axis laser.
Finishing
Finishing lasers are suited for handling small projects with ease and produce a fine, texturized finish to the target surface.
Applications
• Precise Paint Removal
• Surface Texturing & Conditioning
• Pre-Adhesion Treatment
• Pre- and Post-Weld Preparation
• Degreasing/Decontamination
• Rust & Corrosion Removal
• Mold Release Cleaning
• Zinc, Anodization, Oxide Removal
Materials
| • Steel | • Iron |
| • Ceramic | • Aluminum |
| • Brass | • Titanium |
| • Copper | • Concrete |
| • CFRP | • Plastic |
| • Silicon | • Metal Alloys |
| • Cast Iron | • Carbide |
| • Chrome | • Galvanized Metals |
System Specifications
Model Number: LPC-100-MHS
Strip Rate in ft² Per Hour: 12 ft²
Axis: Dual Axis
Power Output: 100 Watt
Laser Safety Class: Class IV
Wavelength: 1070 nm
Operating Mode: Pulsed
Cable Length: 4m
Laser Pattern: 6 Pattern Presets w/controllable parameters
User Interface: 7” Touch Screen Panel
Operational Voltage: 120V 5A 60Hz
Unit Head Weight: 2kg (4lbs)
Total Weight: 40kg (88lbs)
Operating Temperature: 0-40°C (32°-104°F)
Cooling System: Air-Cooling
Size: 600 x500 x 380mm (23.6” x 19.7” x 15”)
Safety Features: Emergency Stop, Key Switch, Remote Interlock, Reset & Emission Indication

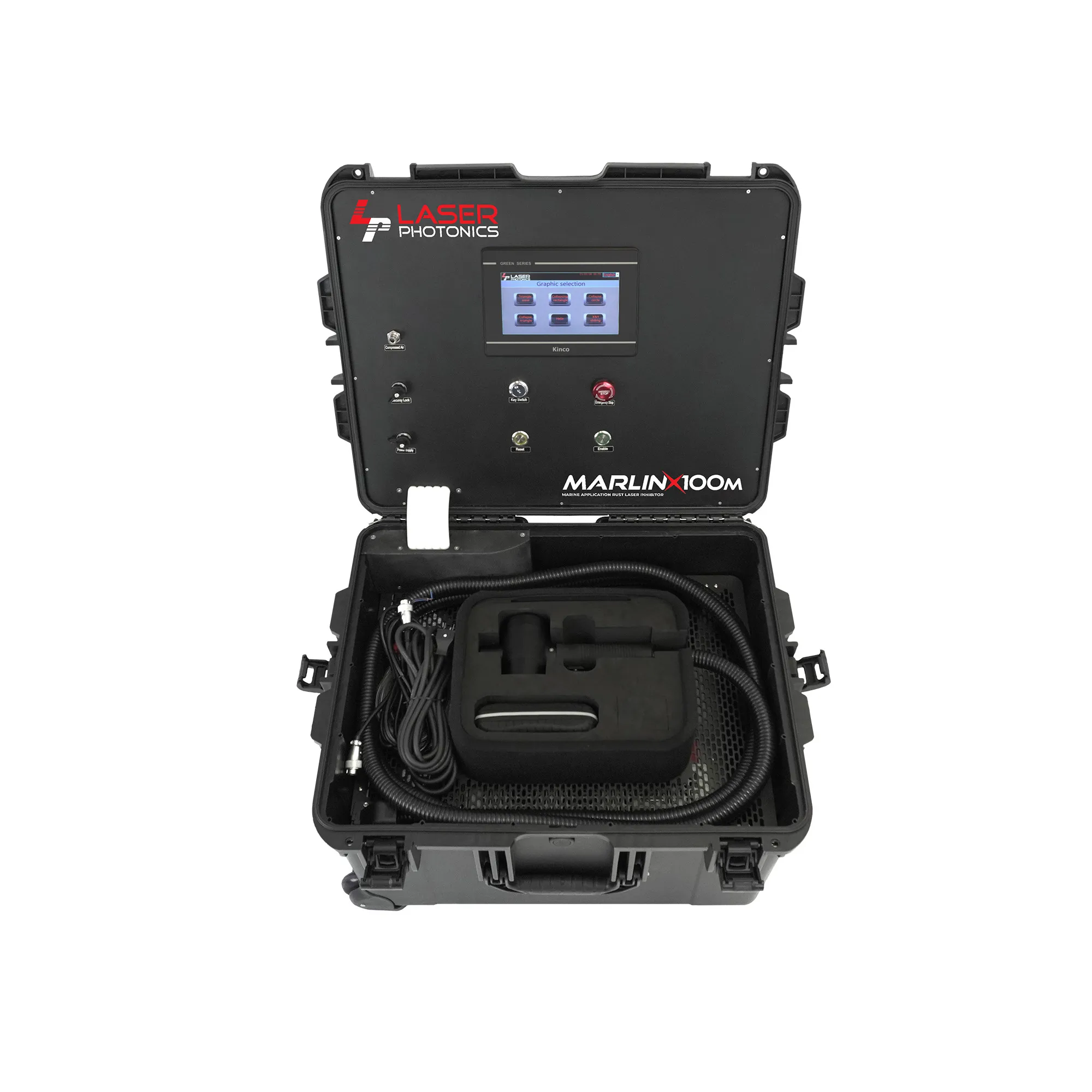

Enclosure Weatherproof Pelican Case
