FiberTower LPC-miniGIANT
Overview

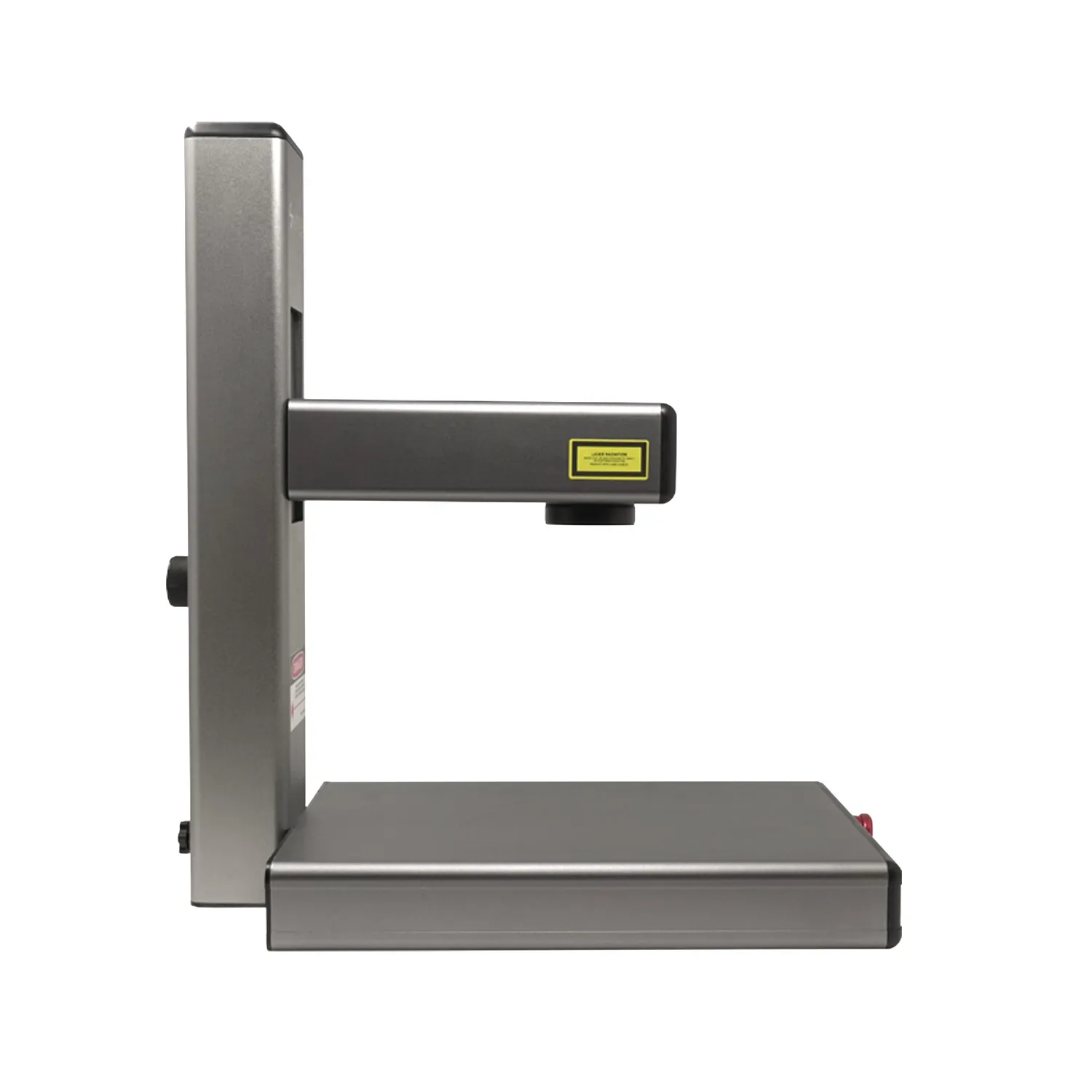

The miniGIANT™ was developed to bring industrial fiber laser marking capabilities to your home or office. Featuring a unique, foldable design, it’s a light, portable, user-friendly model can be easily operated by anyone without experience. The miniGIANT™ is the world’s first affordable Class IV 20-watt laser marking machine with 4” x 4” marking area. It is the thinnest laser marking system on the market. Measuring 5.4cm, and weighing only 10kg, this desktop laser is not only portable—it is easy to carry!
Eco Friendly
Renewable
Cost Effective
The miniGIANT™ is a commercial-grade marking system that is compatible with both 32-bit and 64-bit Windows 10 Operating Systems. It requires zero maintenance and comes with an integrated fiber cable-hidden structure, as well as a two-year manufacturer’s warranty. You can expect long-term industrial-grade reliability with a 100,000-hour working life. This state-of-the-art, low to medium volume, commercial-grade laser marking system can be used in most light manufacturing materials processing environments for a fast, precise, and incredibly productive approach to fiber laser marking.
Note:
Please contact our sales engineer before purchasing to ensure you get the right system for your material processing. We’ll discuss your unique needs, customizations, promotions, and schedule a free sample in our lab.
Industries using the LPC-miniGIANT
Aerospace
- Date Codes
- Serial Number
- Bullet Marking
Automotive
- Paint removal, and surface preparation
- Marking on all automobile parts
- Coating removal on windshields
Military & Defense
- Direct Parts Marking
- UID Marking
- Machine Decontamination
Electrification & Batteries
- Battery Cleaning
- Battery Welding
- Titanium Oxide Removal
Technical Specifications
Applications
| • Indium-Tin Oxide (ITO) or Paint Removal | • OCR Code Marking |
| • Backlit Button Marking | • “On-The-Fly” Marking |
| • Medical/Automotive Coding | • Alphanumeric Marking |
| • IC Chip Package Marking | • Logos and Schematics |
| • 2D UDI/UID Barcoding | • Sequential Serial Numbers |
| • Part Numbering | • Lot Codes and Date Codes |
| • Surface Texturing | • Ablation (Anodized, Painted or Coated) |
| • 3D Engraving/Deep Engraving |
Materials
| • Aluminum (Anodized/Polished/Cast) | • Wood and Ceramics |
| • Stainless Steel and Mild Steel | • Rubber and Silicon |
| • Titanium and Nickel | • Marble and Stone Composites |
| • Copper and Brass | • PVC |
| • Carbide | • Carbide/PVC |
| • Polycarbonate and Polypropylene | • Plastic and Graphite |
| • Painted Metal Alloys | • Fabrics and Leather |
| • Chrome and Cast Iron | • Acrylic and MDF |
| • Galvanized Metals | • And More! |
System Specifications
Model: LPC-miniGIANT
Part Number (MPN): 314-1063-ASY
Power Output: 20 Watt
Laser Safety Class: Class IV
Wavelength: 1064 nm
Operating Mode: Q-switch
Marking Area: 4” x 4”
Operational Voltage: 110v/220v, 8A
Unit Weight: 10kg (22lbs)
Operating Temperature: 0-40°C (32°-104°F)
Cooling System: Air-Cooling
Relative Humidity: 10-90% Non-condensing
Safety Features: Emergency Stop, Laser “ON” Locked Footpad Contact
Part Number (MPN): 314-1063-ASY
Power Output: 20 Watt
Laser Safety Class: Class IV
Wavelength: 1064 nm
Operating Mode: Q-switch
Marking Area: 4” x 4”
Operational Voltage: 110v/220v, 8A
Unit Weight: 10kg (22lbs)
Operating Temperature: 0-40°C (32°-104°F)
Cooling System: Air-Cooling
Relative Humidity: 10-90% Non-condensing
Safety Features: Emergency Stop, Laser “ON” Locked Footpad Contact
