MarkStar™ LPC-MS-PRO
Overview

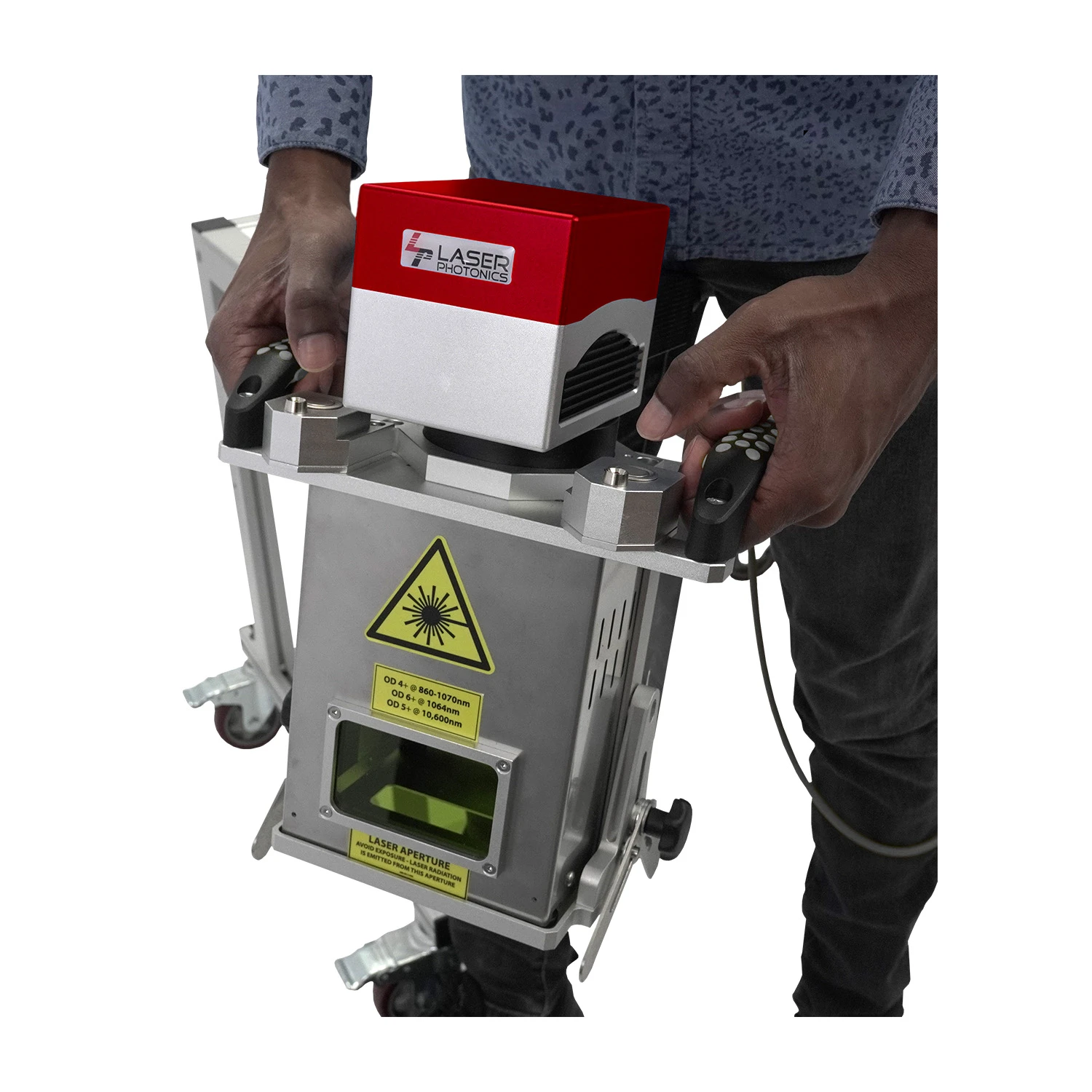

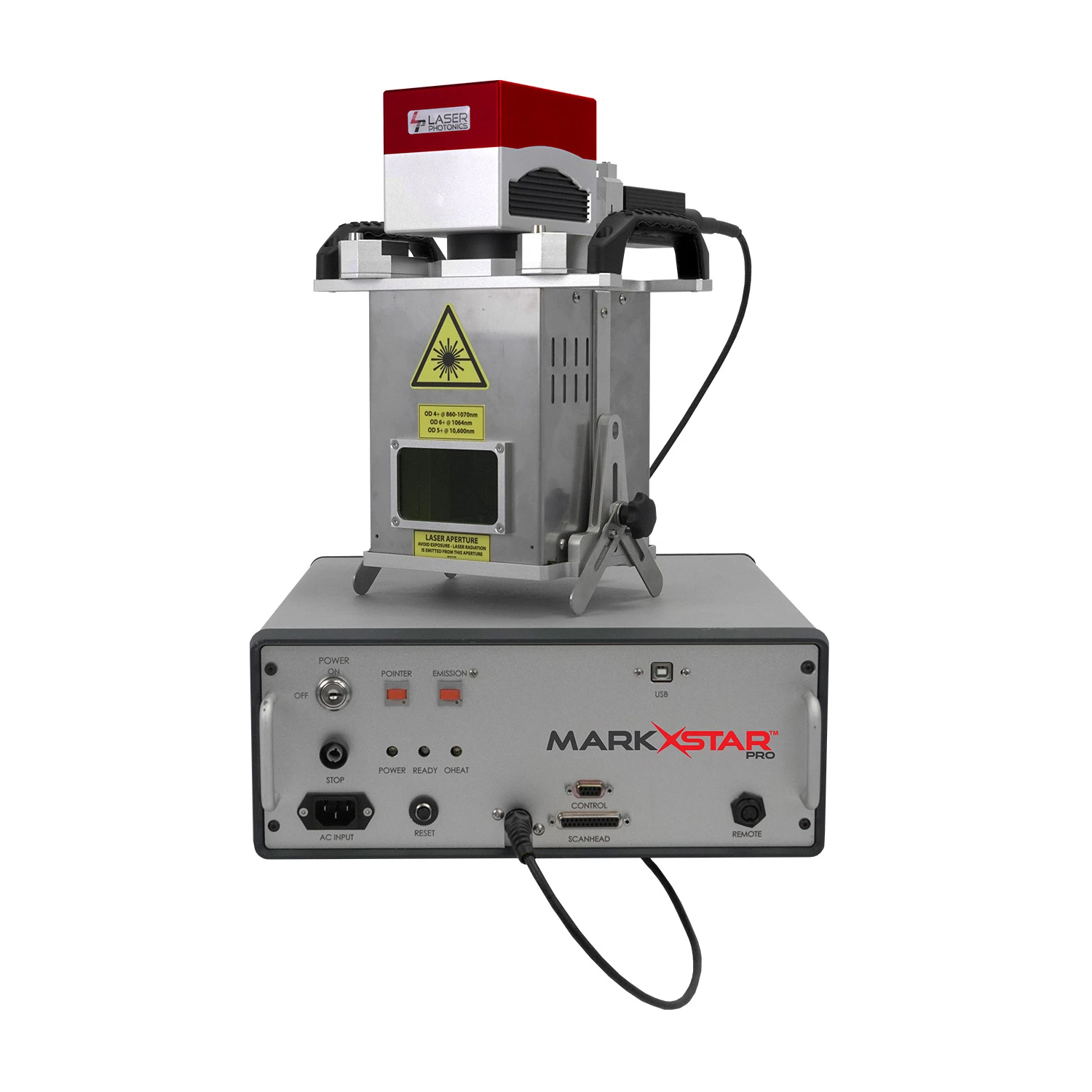

The MarkStarPRO™ LPC-MS-PRO is the industry’s first handheld laser marking & laser engraving system designed for true portability around the shop and into the field operating off both AC/DC power sources. For oversized applications, the MarkStarPRO™ LPC-MS-PRO is the laser marking system of choice and it is built to handle marking nearly any surface type, with a marking area of 4” x 4”.
Safe
Cost Effective
Easy To Use
Direct part marking has never been easier. The MarkStarPRO™ LPC-MS-PRO is ideal for permanently marking large surfaces, with special attention to highly reflective metals. This industrial laser engraver was designed to be maintenance-free and to continuously deliver flawless markings on virtually any surface under any condition. The MarkStarPRO™ system is maintenance-free and requires no consumables with a MTBF rating of > 50,000 hours.
Note:
Please contact our sales engineer before purchasing to ensure you get the right system for your material processing. We’ll discuss your unique needs, customizations, promotions, and schedule a free sample in our lab.
Industries using the LPC-MS-PRO
Aerospace
- Date Codes
- Serial Number
- Bullet Marking
Automotive
- Paint removal, and surface preparation
- Marking on all automobile parts
- Coating removal on windshields
Military & Defense
- Direct Parts Marking
- UID Marking
- Machine Decontamination
Electrification & Batteries
- Battery Cleaning
- Battery Welding
- Titanium Oxide Removal
Technical Specifications
Applications
| • 2D UDI/UID Barcoding | • OCR Code Marking |
| • Sequential Serial Numbers | • Alphanumeric Marking |
| • Lot and Dates Codes | • Logos and Schematics |
| • Medical/Automotive Coding | • Anodized Ablation |
| • IC Chip Package Marking | • Paint Ablation & Removal |
| • Part Numbering | • Coating Ablation |
| • Surface Annealing/Etching | • Galvanized Metals |
| • 3D Engraving/Deep Engraving | • Complex Graphics |
Materials
| • Aluminum | • Rubber & Silicon |
| • Synthesized Plastics | • Nylon/Valox |
| • Titanium and Nickel | • Multi-Coated Materials |
| • Polycarbonate | • Galvanized Metals |
| • Polypropylene | • Carbide/PVC |
| • Painted Metal Alloys | • Glass |
| • Chrome & Cast Iron | • Ceramics |
| • Coated Plastic | • And More! |
System Specifications
Model Number: LPC-MS-PRO
Power Output: 20 Watt
Laser Safety Class: Class IV
Wavelength: 1064 nm
Operating Mode: Q-switch
Cable Length: 3m
Marking Area: 4” x 4”
User Interface: USB Port Supporting Windows 10/FiberScan C3 LT
Operational Voltage: 110v/220v, 8A
Unit Weight: Handheld Unit: 4.1kg (9lbs) Total System: 13.6kg (30lbs)
Operating Temperature: 0-40°C (32°-104°F)
Cooling System: Mini-Exhaust Ventilator
Safety Features: Emergency Stop, Key Switch, Remote Interlock, Reset & Emission Indication
